Bagging Systems
OK Sealer offers a variety of semi-automatic bagging systems. The semi-automatic bagging systems come equipped with a Supersealer hot air or band sealer and a 10′ flat conveyor, optional T-PAK infeed device, SST Top Trimmer and a Trim Remover. It’s available in painted steel, stainless steel, or wash down configurations.

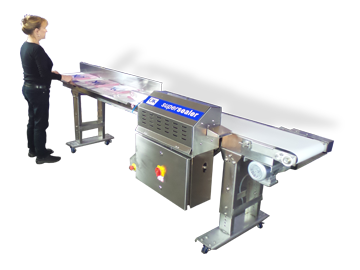

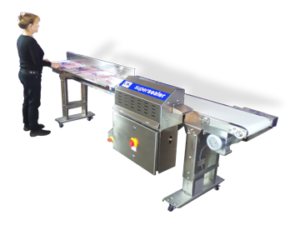

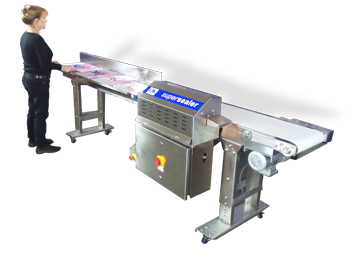

T-PAK 500 Bagging System
OK Sealer offers a variety of semi-automatic bagging systems that offer you a reliable and versatile bag sealing experience. The semi-automatic T-PAK 500 comes equipped with an Supersealer hot air or band sealer, a 10′ long flat conveyor, optional T-PAK infeed device, SST Top Trimmer and a Trim Remover.
This Bagging System is assembled to seal any kind of bag material for the food, medical device or staples industry. This system is used in combination with automatic baggers or multi operators on one line. It’s available in painted, stainless steel or wash down configurations.
All the sealers are available in right to left or left to right configurations with various options.
It runs on 110 or 220 volt, and can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
 Supersealer Bag Sealer | Superior performance for many years |
| Automatic Bag Presentation | Optimum seal quality and aesthetics |
| Modular Design with Individual Frames on Wheels | Mobility and easy access for maintenance |
| Stainless Steel Construction Optional | Ideal for use in food processing plants and harsh environments |
| Stainless steel exterior finish | Clean & durable finish, preferred in food and other industries. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All bag sizes |
| Finish: | Stainless Steel standard, Powder coating optional |
| Speed: | Variable to match Supersealer |
| Machine Handling: | Right to left or left to right |
| Electric: | 110 VAC, 1 Phase, 60 Hz, 10 Amp or 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE components |
| Pneumatic: | Not required for standard configuration Required for optional jet flow trim remover |
| Belt Length: | 10’ or 3 meters. Other sizes on request |
| Belt Width: | 16”/406mm or 18”/457mm. Other sizes on request |

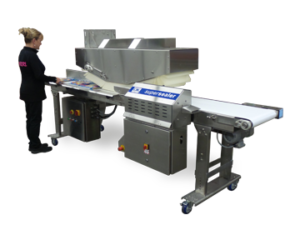

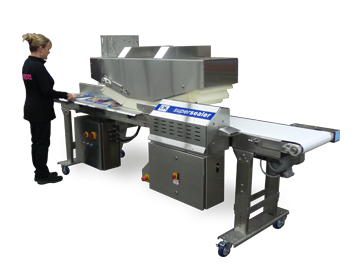

T-PAK 550 Bagging System – Bag Compression
The T-PAK 550 bagging system, is equipped with a flat conveyor and a foam or blue FDA cleat compression belt. The bag with the product comes down the conveyor belt and the foam or cleat compression belt will take the air out of the bag without harming the product. The bag then enters a Supersealer hot air or Supersealer band sealer to get the “perfect seal”. This platform makes this an unchallenged heat-sealing system for many applications, superior in performance and speed with low maintenance cost.
Our satisfied customers include the producers in the scallion/asparagus, produce, bell pepper, poultry, meat, tortilla, bakery and textile industry.
Our T-PAK 550 bagging system is easy to operate and maintain for years of reliable high-quality seals.
All the sealers are available in right to left or left to right configurations and wash down versions with various options.
Features | Benefits |
| Supersealer Bag Sealer | Superior performance for many years |
| Automatic Bag Presentation | Optimum seal quality and aesthetics |
| Full Compression Belt | Removes excess air from the bags |
| Modular Design with Individual Frames on Wheels | Mobility and easy access for maintenance |
| Stainless steel exterior finish | Clean & durable finish, preferred in food and other industries. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All bag sizes |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide |
| Speed: | Variable to match Supersealer |
| Machine Handling: | Right to left or left to right |
| Electric: | 110 VAC, 1 Phase, 60 Hz, 10 Amp or 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE components |
| Pneumatic: | Not required for standard configuration Required for optional jet flow trim remove |
| Belt Length: | 10’ or 3 meters. Other sizes on request |
| Belt Width: | 16”/406mm or 18”/457mm. Other sizes on request |

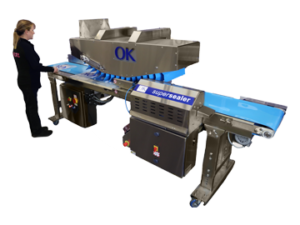

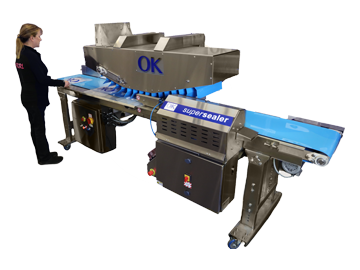

T-PAK 550WD Bagging
System – Washdown
The T-PAK 550 WD System is equipped with a flat conveyor and a blue FDA Cleat compression belt. It’s available in either IP65 or IP69K rated version. The bag with the product comes down the conveyor belt and under the cleat compression belt, which takes the air out of the bag without harming the product. The bag then enters a Supersealer hot air or band sealer to get the “Perfect Seal”. This platform makes this an unchallenged heat-sealing system for many applications superior in performance and speed with low maintenance costs.
Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards. Our stainless steel and IP65 rated bag sealers are trusted worldwide by bakery, seafood, chicken, meat, produce, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.
All the sealers are available in right to left or left to right configurations.
It runs on 110 volt or 220 volt, it can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
| Supersealer Bag Sealer | Superior performance for many years |
| Automatic Bag Presentation | Optimum seal quality and aesthetics |
| Full Compression Belt | Removes excess air from the bags |
| Modular Design with Individual Frames on Wheels | Mobility and easy access for maintenance |
| Stainless steel exterior finish | Clean & durable finish, preferred in food and other industries. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All bag sizes |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide |
| Speed: | Variable to match Supersealer |
| Machine Handling: | Right to left or left to right |
| Electric Requirements: | 110 VAC, 1 Phase, 60 Hz, 10 Amp or 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE components |
| Pneumatic: | Not required for standard configuration Required for optional jet flow trim remove |
| Belt Length: | 10’ or 3 meters. Other sizes on request |
| Belt Width: | 16”/406mm or 18”/457mm. Other sizes on request |

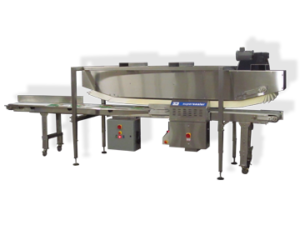

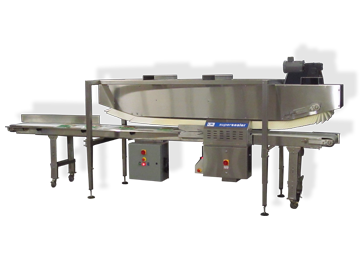

T-PAK 550-2 Bagging System
The T-PAK 550-2 bag compression and sealing system is a high quality system for increasing bag handling and sealing output. The conveyor belt is 18″ wide and 16′ long. The combination of a heavy duty conveyor system with a full width compression belt and the band or hot air Supersealer platform, makes this an unchallenged heat sealing system, superior in performance and speed with low maintenance cost for various applications. Our satisfied customers include the producers in the scallion/asparagus, produce, bell pepper, tortilla and bakery industries.
All the sealers are available in right to left or left to right configurations and wash down versions with various options.
It runs on 110 or 220 volt, and can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
| Supersealer Bag Sealer | Superior performance for many years |
| Automatic Bag Presentation | Optimum seal quality and aesthetics |
| Full Compression Belt | Removes excess air from the bags |
| Modular Design with Individual Frames on Wheels | Mobility and easy access for maintenance |
| Stainless Steel Construction Optional | Ideal for use in food processing plants and harsh environments |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All bag sizes |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide |
| Speed: | Variable to match Supersealer |
| Machine Handling: | Right to left or left to right |
| Electric: | 110 VAC, 1 Phase, 60 Hz, 10 Amp or 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE components |
| Pneumatic: | Not required for standard configuration Required for optional jet flow trim remove |
| Belt Length: | 10’ or 3 meters. Other sizes on request |

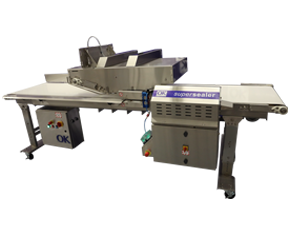

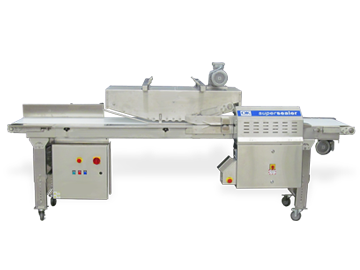

T-PAK 550-3 Bagging System
The T-PAK 550-3 Bag Compression and Sealing System is a high quality system for increasing bag handling and sealing output. The combination of a heavy duty conveyor system with a full width compression belt and a hot air or band Supersealer platform, makes this an unchallenged heat sealing system for many applications, superior in performance and speed with low maintenance cost. Our satisfied customers include the poultry, meat and textile industries.
All the sealers are available in right to left or left to right configurations and wash down versions with various options.
It runs on 110 volt or 220 volt, it can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
| Supersealer Bag Sealer | Superior performance for many years |
| Automatic Bag Presentation | Optimum seal quality and aesthetics |
| Full Compression Belt | Removes excess air from the bags |
| Modular Design with Individual Frames on Wheels | Mobility and easy access for maintenance |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All bag sizes |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide |
| Speed: | Variable to match the Supersealer |
| Machine Handling: | Right to left or left to right |
| Electric Requirements: | 110 VAC, 1 Phase, 60 Hz, 10 Amp or 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE components |
| Pneumatic: | Not required for standard configuration Required for optional jet flow trim remove |
| Belt Length: | 10’ or 3 meters. Other sizes on request |
| Belt Width: | 16”/406mm or 18”/457mm. Other sizes on request |

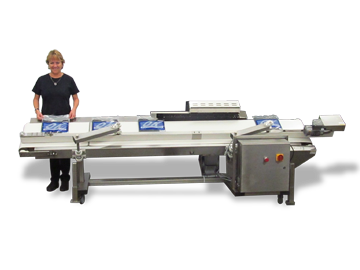

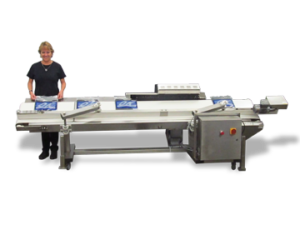

T-PAK 750 Bagging System
Our T-PAK 750 is our high speed semi-automatic bagging system. It is designed for automatically sealing bags coming down a packing line or off an automatic bagging machine.
The system is equipped with an angled conveyor with powered back belt. The Supersealer hot air or Supersealer band sealer, is mounted to the conveyor and is equipped with a T-PAK infeed device. The T-PAK infeed pulls the bag up to the product. The product then proceeds into the Supersealer and exists with the “Perfect Seal”. Each T-PAK 750 is custom built to meet the need of the customer’s application.
All the sealers are available in right to left or left to right configurations with various options.
It runs on 110 or 220 volt, and can be plugged into any wall socket.
It is CE marked.
Our T-PAK 750 bagging system is easy to operate and maintain for years of reliable high-quality seals.
Features | Benefits |
| Supersealer Bag Sealer | Superior performance for many years |
| High Speed | One system meets needs of one or many operators or high speed automatic bagger |
| Minimal Power Requirement | Low utility consumption. Meets needs for green |
| Custom Systems | Systems to meet your application requirements |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All bag sizes |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide |
| Finish: | Powder coating standard, stainless steel optional |
| Speed: | Variable to match the Supersealer |
| Machine Handling: | Right to left or left to right |
| Electric: | 110 VAC, 1 Phase, 60 Hz, 10 Amp or 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE components |
| Pneumatic: | Not required for standard configuration Required for optional jet flow trim remover |
| Belt Width/Length: | 16”/406mm or 18”/457mm. Other sizes on request 10’ or 3 meters. Other sizes on request |
See Our Machines in Action
T-PAK 500 – Bagging System – Sealer and Flat Conveyor
T-PAK 550 Bag Compression and Bag Sealing System
T-PAK 550 Bag Compression and Bag Sealing System – Washdown
T-PAK 550-2 -Bag Compression and Bag Sealing System
T-PAK 550-3 Bag Compression and Bag Sealing System
T-PAK 750 Bag Handling and Sealing System
Options
Customize your machine
- Bag Top Trimmers
- Trim Removers 3″ (76mm) or 5″ (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Available in Washdown IP65
