Band Sealers

The OK Sealer band sealers utilize teflon bands to continuously seal a wide range of bag materials at high speed and efficiency. They come in painted steel, stainless steel, or wash down and are available as a horizontal or vertical set-up. Different configurations are recommended based upon each individual application.

SUPERSEALER SB10

Painted Version

The Supersealer SB10 utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency.

Videos Brochure Manual



SUPERSEALER SB20

Stainless Steel Version

The Supersealer SB20 utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency

Videos Brochure Manual

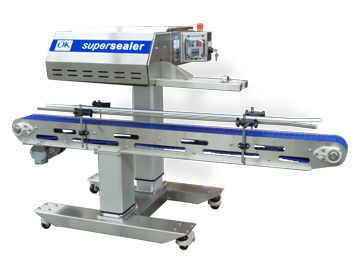

SUPERSEALER SB20 WD

Washdown Version

The Supersealer SB20WD utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency.

Videos Brochure Manual

SUPERSEALER SB30

Heavy Duty Band Sealer

The Supersealer SB30, our heavy duty high speed sealer, utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency.

Videos Brochure Manual

SUPERSEALER SB30EP

Explosion Proof Band Sealer

OK Sealer has just launched a new Explosion Proof Band Sealer. This sealer is built in accordance to NEC specifications.

   Videos Brochure Manual

SUPERSEALER SB40

High Capacity Band Sealer

The Supersealer SB40 High Capacity Rotary Band Sealer continuously seals a wide range of bag materials at a high speed and efficiency.

Videos Brochure Manual

SS1

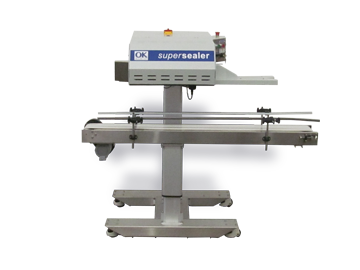

Supersealer SB10 - Painted Band Sealer

The Supersealer SB10 utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency. They are available in painted or stainless steel versions. With their proven band sealing technology and operator friendly controls ensures continuous duty performance in demanding applications.

The Supersealer comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity. With a touch of a button, you can change the height of the sealer, no manual labor required.

The sealer and conveyor slaves off the sealer drive, so both units are always synchronized.

This line of bag and pouch sealers delivers fast, precise, and strong seals on any bag material.  All models offer true plug and play capabilities for reliable and easy-to-use performance for a variety of applications. These models are also available with an optional color touch screen with interface.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over: Easy to maintain

Variable Speed:

Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control: Accurate and consistent sealing temperature
Single frame, in line design.Ease of setup, training and operation.
Motorized Pedestal:With a touch of a button, for height adjustments, simplifying multiple bag applications

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Materials:Heat sealable up to 12 mils
Speed:Up to 48 fpm
Machine Handling:Right to Left or Left to Right
Electric Requirements:
110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked
Pneumatic:Not required on standard configuration Required for optional Jet Flow Trim Remover

SS2 SB20 TS small

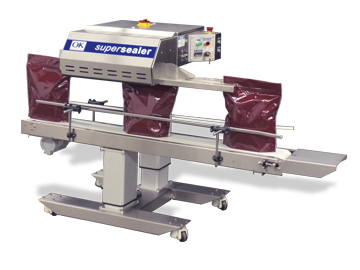

Supersealer SB20 - Stainless Steel Band Sealer

The Supersealer SB20 Stainless Steel version utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency. With their proven band sealing technology and operator friendly controls ensures continuous duty performance in demanding applications.

The Supersealer comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity. With a touch of a button, you can change the height of the sealer, no manual labor required.

The sealer and conveyor slaves off the sealer drive, so both units are always synchronized.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature ControlAccurate and consistent sealing temperature
Motorized PedestalWith a touch of a button, for height adjustments, simplifying multiple bag applications
Stainless steel exterior finish.Clean & durable finish, preferred in food and other industries.
TECHNICAL SPECIFICATIONS
Bag Size Range:All Bag Sizes
Bag Materials:Heat sealable up to 12 mils
Speed:Up to 48 fpm
Machine Handling:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked
Pneumatic:Not required on standard configuration Required for optional Jet Flow Trim Remover

SS2 SB20 TS small

Supersealer SB20WD - Washdown Band Sealer

The Supersealer SB20WD is available in IP65 and IP69K rated washdown bag sealers. An IP65 rating sealer can be washed down using only a garden hose pressure. Our IP69K sealer or system can handle the demands of aggressive washdown.

Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards. Our stainless steel, IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.

Sanitation of plants is the new normal and we have the sealer to meet the demands companies require.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable SpeedEase of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control: Accurate and consistent sealing temperature
Motorized Pedestal: With a touch of a button, for height adjustments, simplifying multiple bag applications
Stainless steel exterior finish.Clean & durable finish, preferred in food and other industries.

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Materials:Heat sealable up to 12 mils
Speed:Up to 48 fpm
Machine Handling:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked
Pneumatic:Not required on standard configuration Required for optional Jet Flow Trim Remover

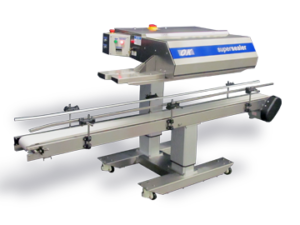

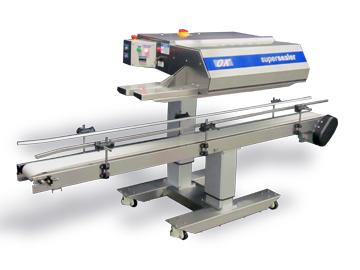

Supersealer SB30 - Heavy Duty Band Sealer

The Supersealer SB30, our heavy duty high speed sealer, utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency. The 316 stainless steel construction in combination with proven band sealing technology and operator friendly controls ensures continuous duty performance in demanding applications.

The Supersealer SB30 deliver added sealing power or high-speed output. Common applications are products of any weight that use a gusseted bag, thicker films or high-speed production. Common industries are poultry, meat, fish, animal feed, fertilizer and mulch, soil and stones.

Videos Brochure Manual

Features

Benefits

Stainless Steel Finish Clean and durable, preferred in food and other industries
Heavy Duty Band Sealing Technology Unique visually automatic band tensioning system
Variable Speed Output can be increased or
decreased with a turn of a screw
Motorized Pedestal with Mobile Base With a touch of button sealer head is raised and lowered for different bag sizes. Base is on casters for mobility
Easy Lift Front Cover On-top access to all components means faster maintenance
No tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Range Material:
Heat sealable up to 12 mils
Speed:Up to 70 feet/min or 30 meters/min. Other Speeds available upon request
Seal Width:1/2” wide or 11mm. Optional 3/4" wide
Machine Handling:Right to left or left to right
Electric:
Constant 80-100 psi, 0.5 CF pean, dry and unlubricated air.
Controls:110 VAC, 1 Ph, 60 Hz, 10 Amp 220 V, 1 Ph, 50 Hz, 7 Amp CE Marked
Pneumatic:Required for optional jet flow trim remover

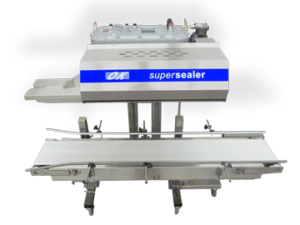

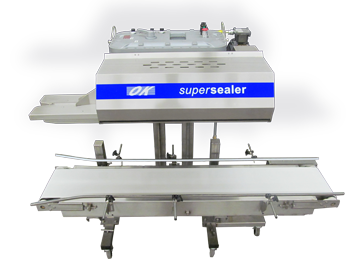

Supersealer SB30 - Explosion Proof Band Sealer

OK Sealer has just launched a new Explosion Proof Band Sealer. With it’s stainless steel construction, this sealer is built in accordance to NEC specifications, Class I and II, Division I and II, Groups G,E and F. All controls are designed for use in hazardous classification areas (explosion-proof), and are built in strict accordance with corresponding specifications.

OK Sealer’s Explosion Proof Band Sealer, is the safe choice when packing products such as combustible dust and powder in hazardous locations and conditions. The Supersealer delivers added sealing power or high-speed output. Common applications are products of any weight that use a gusseted bag, thicker films or high-speed production.

Videos Brochure Manual

Features

Benefits

Stainless Steel Finish Clean and durable
Heavy Duty Band Sealing Technology Unique visually automatic band tensioning system
Variable Speed Touchscreen for increase and decrease in output
Base and Pedestal Crank Height Base and Pedestal. Sealer is on casters
Easy Lift Front CoverOn-top access to all components means faster maintenance
No tool Band Change Over Easy to maintain
Closed Loop PID Temperature Control Accurate and consistent sealing temperature

TECHNICAL SPECIFICATIONS

Bag Size Range:All bag sizes
Bag Range Material:Heat sealable up to 12 mils
Speed:Up to 70 feet/min. Other speeds available upon request
Seal Width:1/2” wide. Optional 3/4" wide
Machine Handling:Right to left or left to right
Electric:110 VAC, 1 Ph, 60 Hz, 10 Amp 220 V, 1 Ph, 50 Hz, 7 Amp CE Marked
Pneumatic:Clean dry air required

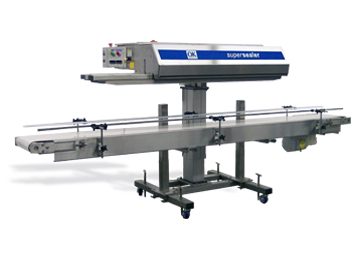

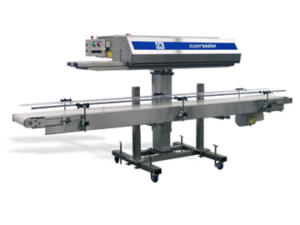

Supersealer SB40 - High Capacity Band Sealer

The Supersealer SB40 Rotary Band Sealer continuously seals a wide range of bag materials at a high speed and efficiency.
The sealer, is a high-quality band sealer that has four heating capsules, creating more heat to seal the bags . The machine will run up to 70 fpm and will seal materials up to 15 mils. Other outstanding sealer features include tool-less band changing, single point heating and cooling bar adjustment, thermally isolated heat bars, and digital temperature controls. The Supersealer comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity. With a touch of a button, you can change the height of the sealer, no manual labor is required.
The sealer and conveyor slaves off the sealer drive, so both units are always synchronized.

Videos Brochure Manual

Features

Benefits

Stainless Steel Finish Clean and durable, preferred in food and other industries
Heavy Duty Band Sealing Technology Unique visually automatic band tensioning system
Variable SpeedOutput can be increased or decreased with a turn of a screw
Motorized Pedestal with Mobile Base With a touch of button sealer head is raised and lowered for different bag sizes. Base is on casters for mobility
Easy Lift Front Cover On-top access to all components means faster maintenance
No tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature

TECHNICAL SPECIFICATIONS

Bag Size Range:All bag sizes
Bag Range Material:Heat sealable up to 15 mils
Speed:Up to 70 feet/min. Other Speeds available upon request
Seal Width:1/2” wide. Optional 3/4" wide
Machine Handling:Right to left or left to right
Electric:110 VAC, 1 Ph, 60 Hz, 10 Amp 220 V, 1 Ph, 50 Hz, 7 Amp CE Marked
Pneumatic:Not required for standard configuration

See Our Machines in Action

Supersealer SB10/SB20 Band Sealer

Supersealer SB20/SS2 Band Sealer - Washdown

Supersealer SB30 - Heavy Duty Band Sealer

Supersealer SB30 - Explosion Proof Band Sealer

Supersealer SB40 - High Capacity Rotary Band Sealer

Options

Customize your machine

  • Bag Top Trimmers
  • Trim  Removers 3" (76mm) or 5" (127mm)
  • Automatic Infeed
  • Bag Coders and Printers
  • Conveyors
  • Bag Fillers and Bag Loaders
  • Washdown and Corrosive Washdown
  • Dedusters for difficult dusty environments
  • Touchscreen Display Unit
  • SB30 Exp Proof - to be determined with project
