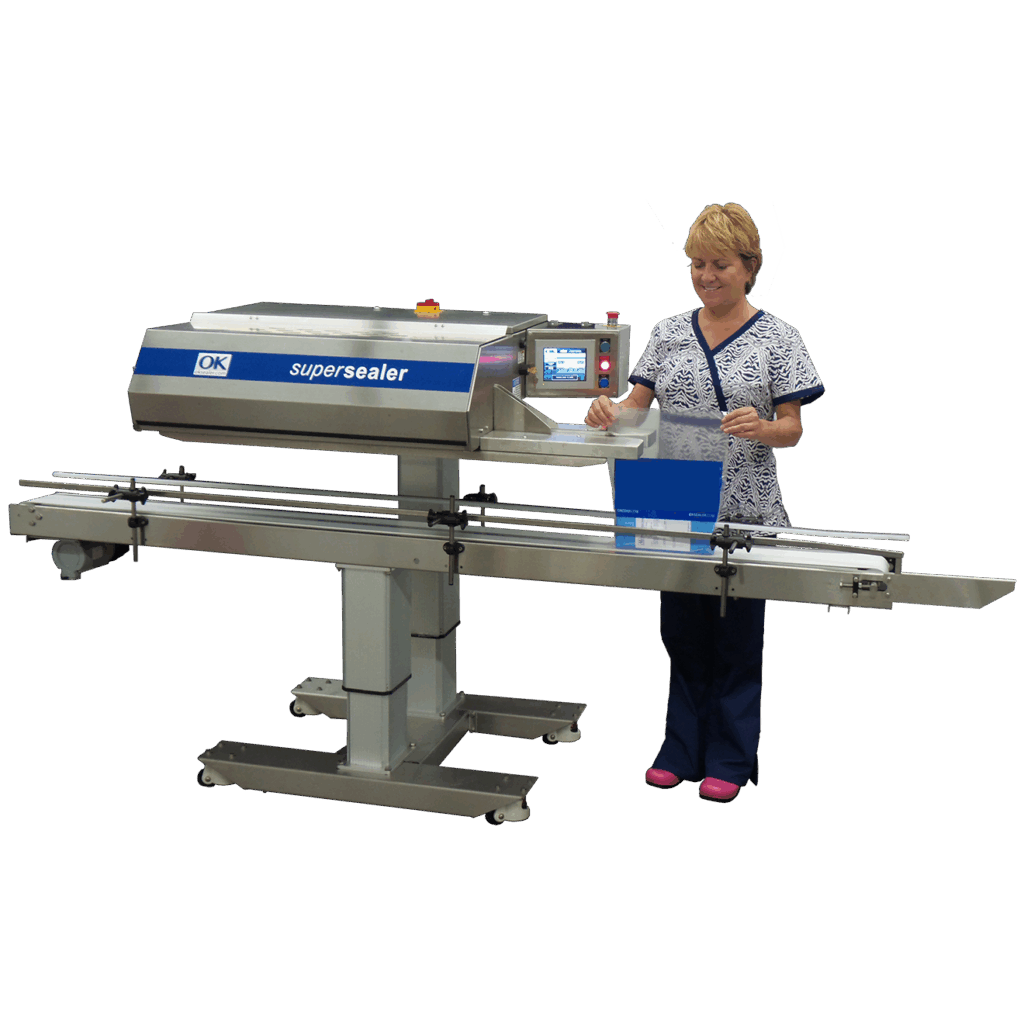

Supersealer MBS30 Medical Band Sealer
The Supersealer MBS30 Medical Band Sealer, is a continuous rotary band sealer designed to meet FDA guidelines (ANSI, AAMI, ASTM, ISO11607-2, ISO13485, ISO9001, and EN 868) for the medical packaging industry. It can seal a wide range of medical packaging materials, including Poly/Poly, Tyvek, Mylar, Pet Coated Tyvek, Paper/Poly, Laminated Foil and Metalized Foil Pouches.
How is the Supersealer MBS30 medical band sealer the most advanced sealer on the market?
The Supersealer MBS30 medical band sealer incorporates many features that ensure perfect and safe seals. Exclusive sensors to this unit are the broken band sensor, and wrinkle detector. MBS sealers are also fully validatable/calibratable, that’s why it’s equipped with its own HMI—which monitors heat, pressure and speed.
You can upload up to 65 recipes into the HMI. The bag changeover is made easy. Click your recipe for your bag/pouch input and all the parameters change automatically, including the height of the sealer.
External ports are available for pressure, so your calibrated instruments can easily be plugged in.
Medical Band Sealers also include an ethernet port for the extraction/monitoring of data. The MBS30 can create reports that will display all parameters of a recipe used during a sealing session. Statistics within this report include average and standard deviation of the process variable, and also a listing of any out-0f-tolerance sampling points. Data reporting software is an optional package that can be included with a sealer.
Features | Benefits |
 No tool band change over: | Easy to maintain. |
| Variable Speed: | Ease of matching conveyor speeds and flexibility. |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature. |
| Touch Panel Monitor: | Operators, Managers, QC personnel can always see all variables of the machine at all times, both set and actual. |
| Recipes in PLC: | Pouch/bag change over made easy with menu and load up the next pouch/bag parameters with a touch of a button. Can hold up to 65 recipes |
| Easy Lift Cover: | No tool required for band change with easy access. |
| Motorized Pedestal: | Adjust height with a touch of a button, simplifying multiple bag applications. |
| Plugs into any wall plug: | Minimal utility requirements – 110 or 220 Volt. |
| Ethernet Port: | Included to enable the extraction of data from the machine. |
| Out of PLC parameter settings: | No pouch/bag will be sealed out of its parameter settings. The machine will run in reverse if out of its parameters. |
| Wrinkle Detector: | Wrinkles in the pouch/bag will be detected by the sensor, flagged in the system, and machine will run in reverse to reject the bag. |
| Broken Band Sensor: | When the MBS30 senses a broken band, the machine will run in reverse to reject the bag. |
| IQ/OQ sample documents: | Information for the small to mid-size companies that may require an introductory guideline. |
| Packaging of terminally sterilized medical devices: | Meeting: ANSI/AAMI/ASTM, ISO 11607-2, ISO 13485, ISO 9001, and EN 868 standards for compliance. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Pouch/bag materials: | Heat seal up to 12 mils (300 microns) and will seal a wide range of materials such as Poly/Poly, Tyvek, Mylar, Pet Coated Tyvek, Paper/Poly, Laminated Foil and Metalized Foil. |
| Speed: | Up to 70 ft/min or 121.3mt/min belt speed. Other speeds available upon request. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp, CE Marked. |
| Pneumatic: | 80-100 psi clean dry air. |
| Seal width: | 1/2″ wide (11mm). Optional 3/4″ wide (19.05mm). |
| Heat Bars: | One pair (1) 7″ (17.78cm). |
| Cooling Bars: | One pair (1) 5″ (12.7cm). |
| PLC Control: | Touch Panel. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Data reporting software
