Hot Air Sealers

The Supersealer Hot Air Sealers utilize hot air to continuously seal a wide range of bag materials at high speed and efficiency. They are available in painted steel, stainless steel, or wash down. We offer horizontal and vertical sealing systems in stand alone and custom configurations.
SS1

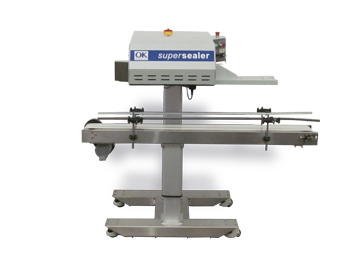

SS1 w/BBY100 Conveyor

Supersealer SS1

Painted Version

The Supersealer SS1 utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency.

Videos Brochure Manual

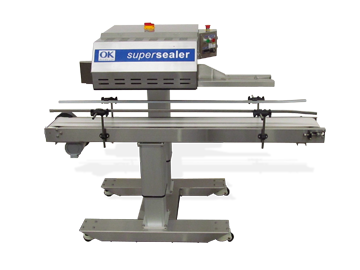

SS2 w/BBY100 Conveyor

Supersealer SS2

Stainless Steel Version

The Supersealer SS2 utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency

Videos Brochure Manual

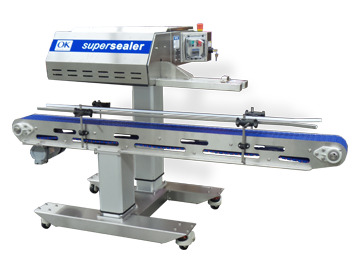

SS2WD w/BBY600 Conveyor

Supersealer SS2 WD

Washdown Version

The Supersealer SS2WD utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency.

Videos Brochure Manual

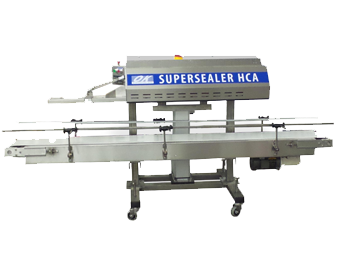

SS4 w/BBY200 Conveyor

Supersealer SS4

High Capacity Hot Air Sealer

The Supersealer SS4 High Capacity Rotary Hot Air Sealer continuously seals a wide range of bag materials at a high speed and efficiency.

Videos Brochure Manual

Options

Customize your machine

  • Bag Top Trimmers
  • Trim  Removers 3″ (76mm) or 5″ (127mm)
  • Automatic Infeed
  • Bag Coders and Printers
  • Conveyors
  • Bag Fillers and Bag Loaders
  • Washdown (IP65 or IP69K) and Corrosive Washdown
  • Dedusters for difficult dusty environments
  • Touchscreen Display Unit

SS1

Supersealer SS1 Hot Air Sealer – Painted version

The Supersealer SS1 Hot Air Sealer, utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency. The advanced airflow, sophisticated controls, and rugged painted construction ensures continuous uptime performance in all applications.

By using ambient air to seal the bag, there is no requirements for compressed air. The Supersealer gives customers a low maintenance and an outstanding return on investment along with the many years of uptime the machine will have.

Videos Brochure Manual

Features

Benefits

Hot Air Sealing Technology Optimum seal quality at low maintenance
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature
Motorized PedestalWith a touch of a button, for height adjustments, simplifying multiple bag applications

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Materials:Heat Sealable up to 20+ mils.
Speed:Up to 120 fpm or 36.5 mpm
Seal Wheels:1/4” or 6mm standard 1/3” or 9mm
Machine Handing:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp
Pneumatic:Not Required on standard configuration Required for optional Jet Flow Trim Remover

Supersealer SS2 – Hot Air Sealer – Stainless Steel

The Supersealer SS2 Hot Air Sealers utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency. The advanced airflow, sophisticated controls, and 316 stainless steel construction, ensures continuous uptime performance in all applications.

By using ambient air to seal the bag, there is no requirements for compressed air. The Supersealer gives customers a low maintenance and an outstanding return on investment along with the many years of uptime the machine will have.

Videos Brochure Manual

Features

Benefits

Hot Air Sealing Technology: Optimum seal quality at low maintenance
Variable Speed: Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control: Accurate and consistent sealing temperature
Motorized Pedestal:With a touch of a button, for height adjustments, simplifying multiple bag applications
Stainless steel exterior finish.Clean & durable finish, preferred in food and other industries.

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Materials:Heat Sealable up to 20+ mils.
Speed:Up to 120 fpm or 36.5 mpm
Seal Wheels:1/4” or 6mm standard 1/3” or 9mm
Machine Handing:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp
Pneumatic:Not required on standard configuration Required for optional Jet Flow Trim Remover

Supersealer SS2 Washdown

The Supersealer SS2 Washdown Hot Air Sealer is available in a IP65 or IP69K rated bag sealer. An IP65 rated bag sealer can be washed down with a garden hose pressure only. Our IP69K bag sealer or system can handle the demands of aggressive washdown.

Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards. Our IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.

Videos Brochure Manual

Features

Benefits

Hot Air Sealing Technology: Optimum seal quality at low maintenance
Variable Speed: Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control:Accurate and consistent sealing temperature
Motorized Pedestal:With a touch of a button, for height adjustments, simplifying multiple bag applications

TECHNICAL SPECIFICATIONS

Bag size range:All Bag Sizez
Bag Materials:
Heat Sealable up to 20+ mils.
Speed:Up to 120 fpm or 36.5 mpm
Seal Wheels:1/4” or 6mm standard 1/3” or 9mm 1/2” or 12 mm by request
Machine Handling:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp
Pneumatic:Not Required on standard configuration Required for optional Jet Flow Trim Remover
Finish:Stainless Steel

Supersealer SS4 – High Capacity Sealer

The Supersealer SS4, Stainless Steel High Capacity Hot Air Sealer, is designed to operate in tough industrial applications and demanding environments. With years of field experience and customer input, the SS4 sealing machine is supplied to provide superior bag sealing efficiency and reliability.

Its 316 stainless steel finish, heavy-duty construction, motorized and increased heat capacity enables sustainable high-speed output for thicker bags. With it’s 8 heaters, it will seal material up to 40 mils or 1000 microns and run a speed up to 120 fpm. The sealer provides consistent worry-free long-term reliability for a wide range of tough sealing products.

Videos Brochure Manual

Features

Benefits

Stainless Steel Finish Clean and durable
Hot-Air Sealing Technology: Optimum seal quality at low maintenance
Variable Speed:Ease of matching conveyor speed and flexibility
PID Temperature Controls:Accurate and consistent sealing temperature

TECHNICAL SPECIFICATIONS

Bag Size RangeAll Bag Sizes
Bag Material Range:Heat sealable materials up to 40 mils or 1000 microns
Speed:Up to 120 fpm or 36.5 mpm belt speed
Seal Width:1/4” or 6mm plain or textured 1/3” or 9mm plain or textured
Machine Handing:Right to Left or Left to Right
Electric:220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE Marked
Pneumatic:80-160 psi clean dry air required when optional trim remover used
Finish:Stainless steel electrical enclosure and cover sheets.

See Our Machines in Action

Supersealer SS2 – Continuous Rotary Hot Air Sealer – Stainless Steel Version

Supersealer SS2 w/M-500 Conveyor – Hot Air Sealer

Supersealer SS2 – Continuous Rotary Hot Air Sealer – Washdown

Supersealer SS4 – High Capacity Hot Air Sealer
