Other Available Systems

The OK Sealer Division offers several other sealing systems in providing our customers with a unbiased, application-driven equipment approach. Offering machinery within every market segment and across the entire packaging machinery industry.

Twin Supersealer System

Applications for a Double Seal

The Supersealer Twin System, is either two hot air sealers or two band sealers. This system is recommended for the applications who requires a double seal.

Videos Brochure Manual



Supersealer w/ M500 Conveyor

Heavy Weight Applications

The Supersealer Heavy Weight System consist of either a hot air or band sealer with a support conveyor that will hold a product up to 60 lbs. and has a variable speed.

Videos Brochure Manual

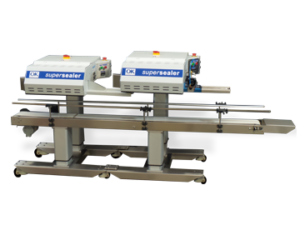

Twin Supersealer System

The Twin Supersealer system is either two Supersealer hot air or two Supersealer band sealers, with a base and motorized pedestal. Available with an optional trimmer and trim remover and BBY200 support conveyor.

This system is recommended for the applications who requires a double seal. It comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity.  With a touch of a button, you can change the height of the sealer. There is no manual labor required.

The bag sealer will run up to 120 fpm and will seal materials up to 20+ mils.

All the sealers are available in right to left or left to right configurations with various options.

It runs on 110 or 220 volt, and can be plugged into any wall socket.

This system is CE marked.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature
Motorized PedestalWith a touch of a button, for height adjustments, simplifying multiple bag applications

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Materials:Heat sealable up to 20+ mils
Speed:Up to 120 fpm or 36.5 mpm
Machine Handling:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp
220 VAC, 1 PH, 50 Hz, 7 Amp
CE Marked
Pneumatic:Not required on standard configuration
Required for optional Jet Flow Trim Remover

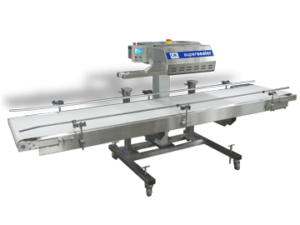

Sealer w/M500 Conveyor

For heavy weight applications, we offer the Supersealer SS2 Hot Air Sealer or Supersealer SB20 Band Sealer with a standard motorized aluminum pedestal, stainless steel base, casters with lock down pads and M500 support conveyor.

This system will hold a product weight up to 60 lbs. and has a variable speed motor (synchronized with the sealer drive).  It’s equipped with a PVC laced belt and adjustable side guides. Our standard belt is 12” wide and the bed is 8’ long but is available for any customized requirements.

The bag sealers will run up to 120 fpm and will seal materials up to 20+ mils.

The Supersealer comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity.  With a touch of a button, you can change the height of the sealer. There is no manual labor required.

All the sealers are available in right to left or left to right configurations with various options.

It runs on 110 or 220 volt, and can be plugged into any wall socket.

This system is CE marked.

Washdown version – IP65 and IP69K Rated Washdown Bag Sealers. An IP65 rating sealer can be washed down with a garden hose pressure only. Our IP69K Sealer or system can handle the demands of aggressive washdown.

Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards. Our IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature
Motorized Pedestal With a touch of a button, for height adjustments, simplifying multiple bag applications
Stainless steel exterior finishClean & Durable finish, preferred in food and other industries

TECHNICAL SPECIFICATIONS

Bag Size Range:All Bag Sizes
Bag Materials:Heat sealable up to 20+ mils
Speed:Up to 120 fpm or 36.5 mpm
Machine Handling:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked
Pneumatic:Not required on standard configuration Required for optional Jet Flow Trim Remover

See Our Machines in Action

Twin Supersealer System

Supersealer with Conveyor for Heavy Weights

Options

Customize your machine

  • Bag Top Trimmers
  • Trim  Removers 3″ (76mm) or 5″ (127mm)
  • Automatic Infeed
  • Bag Coders and Printers
  • Conveyors
  • Bag Fillers and Bag Loaders
  • Washdown or Corrosive Washdown
  • Deduster for Difficult Dusty Environments
